PARK & CAMPGROUND BUYER GUIDE
A fire ring grill may look like a simple steel enclosure with a cooking grate, but its individual components make a difference in everyday use. The grate determines the available cooking space, its hinges or supports control how it moves, and the mounting system affects how staff can access the area for cleanup.
For park managers and campground operators, understanding these details makes it easier to compare models and ask the right questions before ordering. This guide explains the main parts of a commercial fire ring grill, what they do, and which features deserve a closer look.
For a broader comparison of fire rings and other campsite cooking equipment, start with our guide to campground grills.
What Are the Main Components of a Fire Ring Grill?

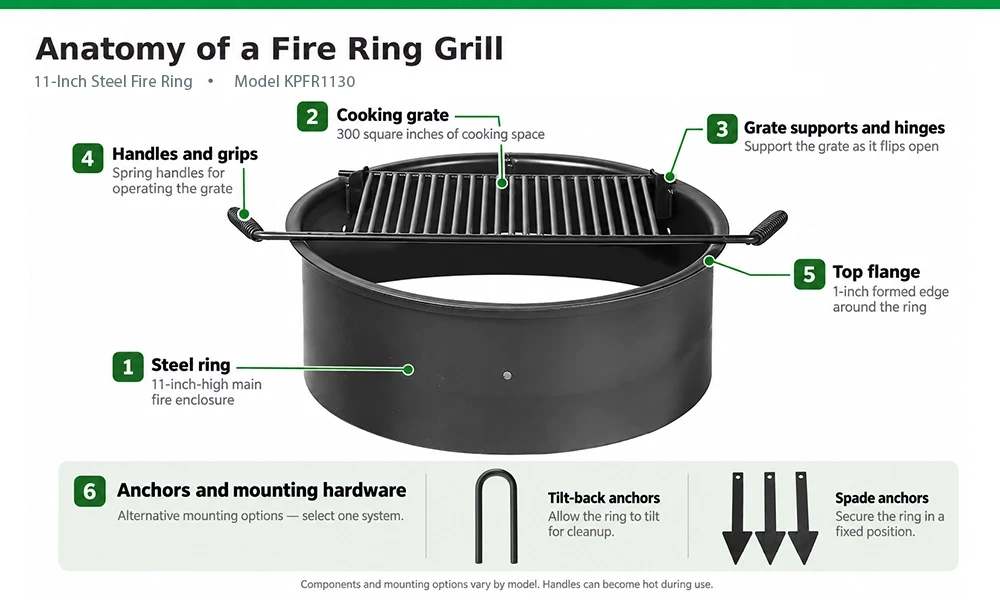

A typical fire ring grill combines a steel fire enclosure, a cooking grate, grate supports or hinges, and a mounting system. Depending on the model, it may also have handles, a formed top flange, or an adjustable cooking mechanism.
Not every fire ring includes every feature. Use the following overview as a starting point, then check the specifications and installation instructions for the model you are considering.
| Component or feature | Main purpose | What to compare |
|---|---|---|
| Steel ring | Forms the perimeter of the fire area | Steel thickness, diameter, and wall height |
| Cooking grate | Provides the surface for cooking | Usable cooking area and bar construction |
| Grate supports or hinges | Hold the grate and determine its movement | Cooking height, movement, and access below |
| Handles or grips | Provide a way to operate a movable grate | Location and operating instructions |
| Top flange, where included | Reinforces the upper edge | Edge design and construction |
| Anchors or mounting hardware | Secure the ring at its installed location | Mounting requirements and cleanup access |
The Steel Ring: The Main Fire Enclosure
The steel ring forms the body of the unit. When comparing models, look at wall height, diameter, and steel thickness as separate specifications. A wider ring does not automatically provide more cooking space, and a taller wall does not tell you how high the grate sits.
For example, Park Tables’ 30-inch park fire ring with a 300-square-inch cooking surface has a 7-inch-high enclosure made from 3/16-inch steel. These measurements describe different parts of the product: the ring’s footprint, its wall height, and its construction.
Taller Rings for Wheelchair-Accessible Designs

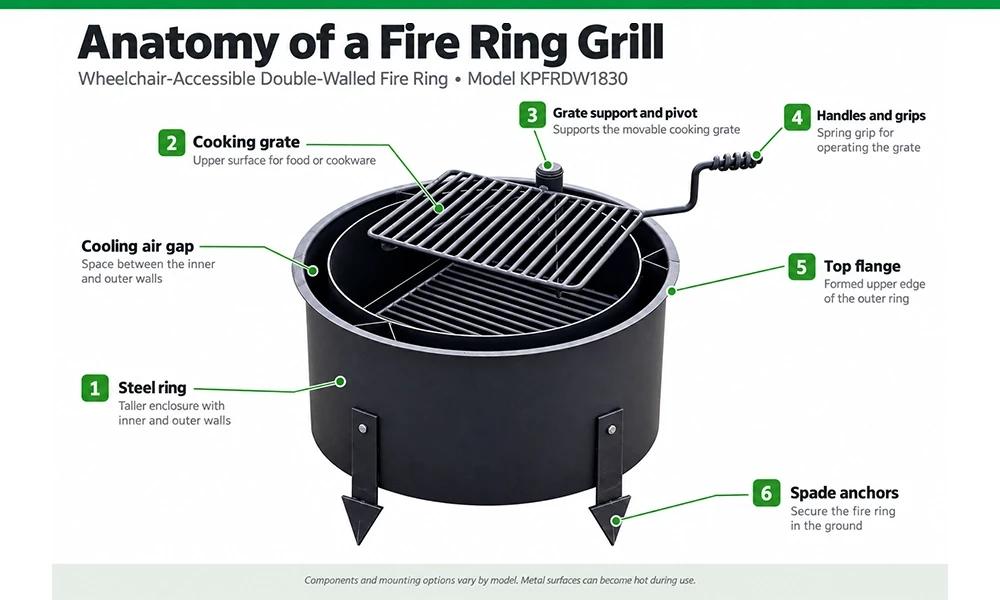

Some wheelchair-accessible fire ring grills use a taller enclosure to support a raised cooking area for seated users. For example, the Wheelchair Accessible Double-Walled Fire Ring has an 18-inch-high ring. Ring height is one consideration when comparing accessible models; also review the cooking surface, handle placement, and space available around the installed grill.
Double-Wall Construction
Some fire rings feature separate inner and outer steel walls with an air gap between them. On this model, that gap provides cooling space between the fire enclosure and the outer ring. This construction differs from a single-wall ring, but it does not make the exterior safe to touch during use.
Buyer tip: Put ring dimensions and cooking surface area in separate columns when comparing products. This makes it easier to see what each model actually offers.
The Cooking Grate: The Usable Cooking Surface
The cooking grate is the bar assembly positioned over part or all of the fire area. Its listed cooking surface is the space available for food or suitable cookware, which can be considerably smaller than the area inside the ring.
Start by considering how guests are likely to use the campsite. Will the grate support occasional camp meals, or is cooking a central part of the experience? Compare usable cooking area and grate construction with those needs in mind.
Also check whether the grate is included with the selected configuration. Some fire ring product lines offer versions without one.
Buyer tip: Do not estimate cooking capacity from the ring diameter or a product photograph alone. Use the stated cooking surface measurement.
To explore the cooking side of these features, read our guide to grilling on a fire pit park grill.
Grate Supports and Hinges: How the Grate Moves

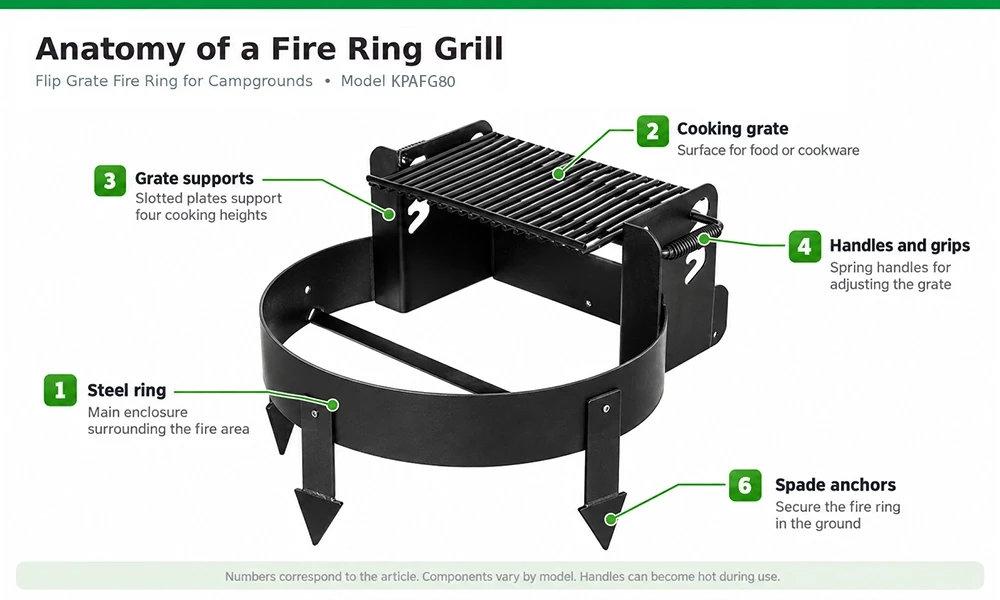

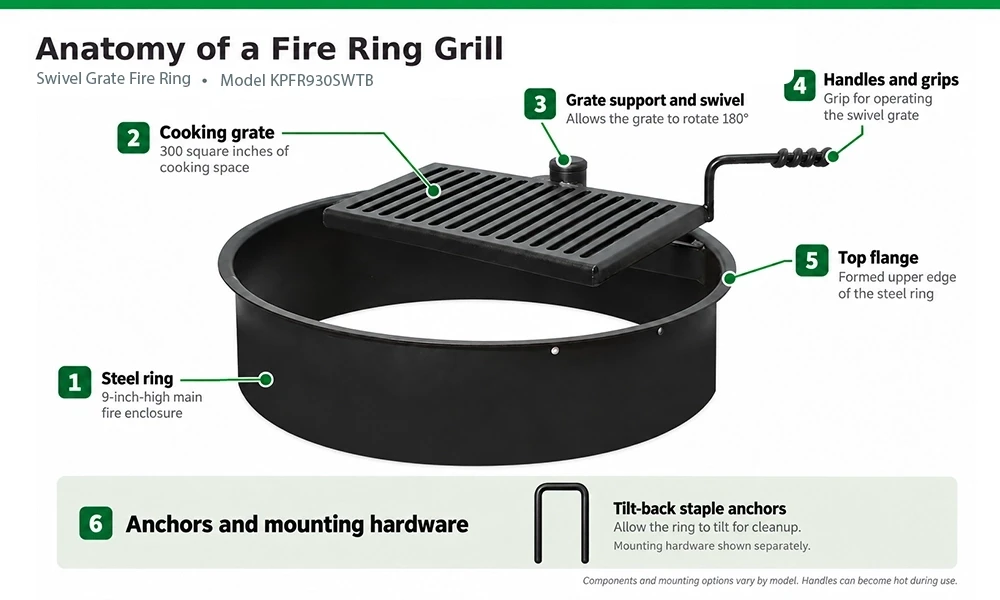

The mechanism supporting the grate can be just as useful to compare as the grate itself. A cooking surface may sit at one working height, adjust vertically, flip upward, or swivel away, depending on the design.
These terms answer different questions. A single-height grate may still flip back to expose the fire area. Likewise, a movable grate is not necessarily adjustable in cooking height.

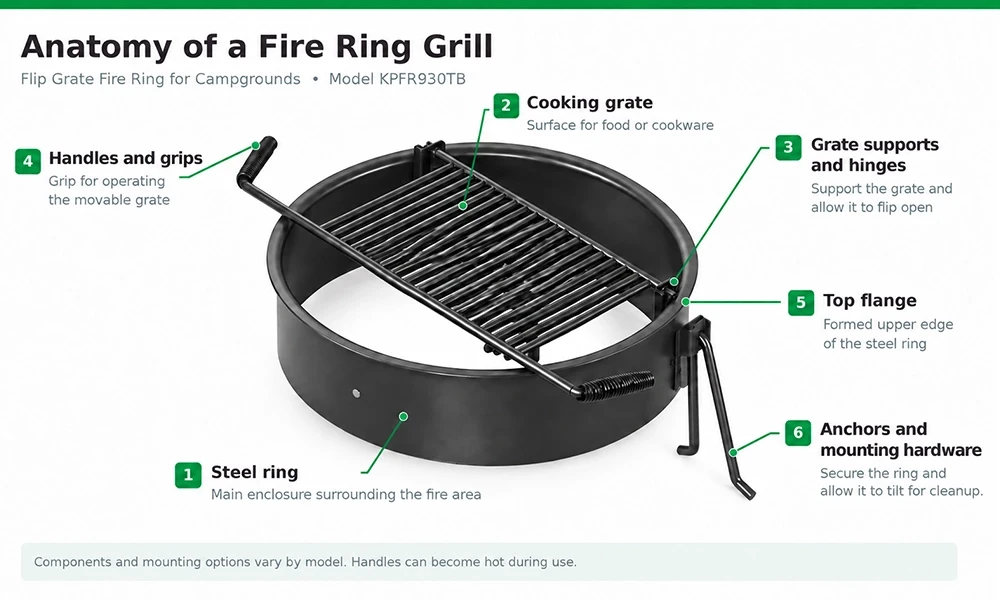

Park Tables’ Flip Grate Fire Ring for Campgrounds uses a hinged grate that opens access below for fire building and cleaning. When reviewing a model like this, consider where the grate rests when open and how staff will reach the interior.
Buyer tip: Ask both “Can the grate move out of the way?” and “Can its cooking height be changed?” Treat these as separate features.
Handles and Grips: Operating the Grate
Handles provide a designated place to lift or reposition a movable cooking grate. Some designs include coiled spring grips, including the flip-grate model linked above.
Look at handle placement alongside the movement of the grate. Product photos can help identify the handles, but operating instructions should explain how the assembly is intended to be used. A handle’s appearance does not establish that it is safe to touch while the unit is hot.
Buyer tip: Request the operating instructions before choosing a model if the handle arrangement or adjustment method is unclear.
The Top Flange: A Detail Along the Upper Edge
Some commercial fire rings have a formed flange around the top of the enclosure. This bent edge reinforces the ring and changes the profile of the exposed upper rim. It is part of the ring’s construction, rather than a separate cooking surface or shelf.
Because an edge treatment can be difficult to see in a small product image, check the written specifications or a close-up photo. Do not assume every ring has the same rim design.
Anchors and Mounting Hardware: Placement and Cleanup Access
Anchors connect the ring to its installed location. The mounting option can also change how maintenance staff access the area underneath and around it.

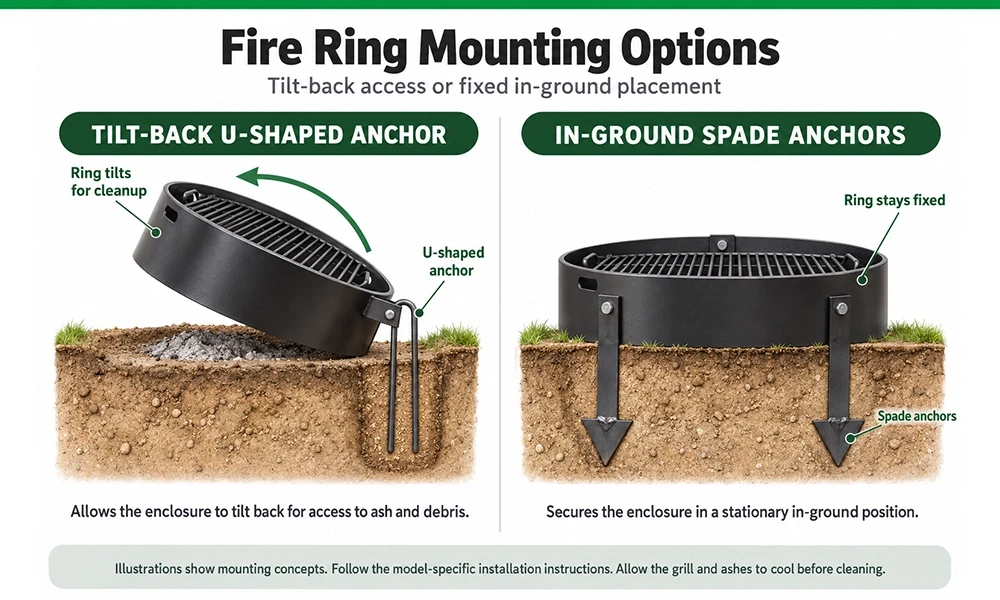

Some models offer tilt-back mounting so the ring can tip for cleanout. Others use a different anchoring arrangement. For example, the 7-inch park fire ring linked earlier offers tilt-back or in-ground spade anchor options.

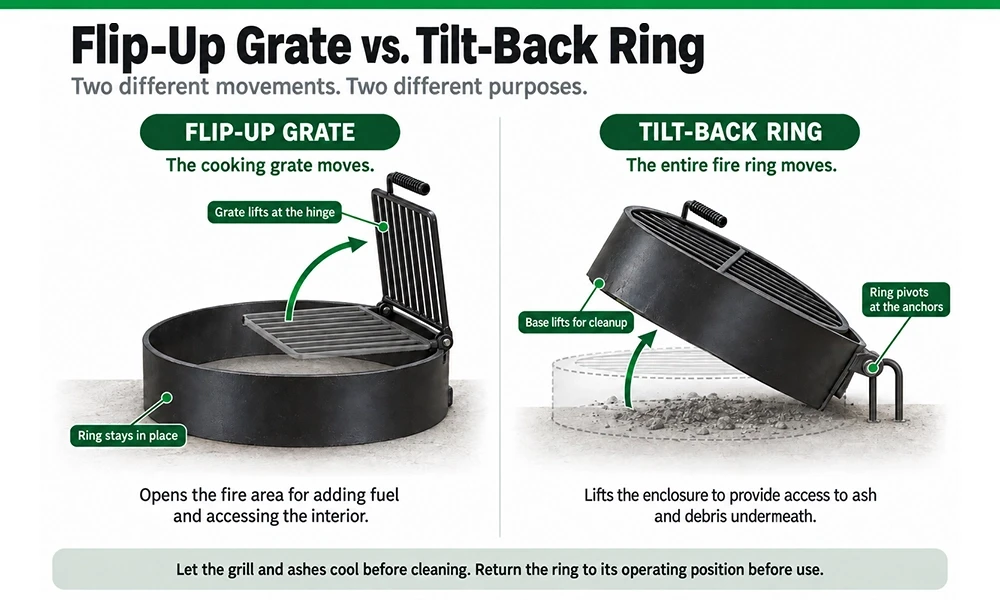

One distinction is especially useful: a flip-up grate and a tilt-back ring are two different mechanisms. The first opens the cooking surface; the second concerns movement of the enclosure at its mounting points. Check each feature independently.
Buyer tip: Review the installation drawing for the exact anchor option you plan to order. Include the mounting method in your comparison before estimating installation work.
When planning ongoing care, our commercial outdoor charcoal park grill maintenance guide is a useful companion. Follow the instructions for your specific fire ring when selecting cleaning methods or maintenance products.
Questions to Ask Before Choosing a Fire Ring Grill
Once you understand the components, use these questions to narrow the options:
- How much cooking surface does the selected model provide?
- Does the grate open, swivel, adjust in height, or remain in place?
- What access will staff have for routine cleanup?
- Which mounting hardware is included, and what installation work is required?
- Are the dimensions and features listed for the exact configuration being ordered?
- Can the supplier confirm replacement-component availability for that model?
If the project calls for an accessible fire ring, identify that requirement at the beginning of the selection process and request the relevant product and installation documentation.
Frequently Asked Questions
Is the cooking grate the same size as the fire ring?
Not necessarily. Ring dimensions describe the enclosure, while cooking surface area describes the grate. Compare both measurements rather than assuming a larger ring includes a proportionally larger cooking surface.
Does a flip-up grate mean the cooking height is adjustable?
No. A grate can flip upward for access while still having one cooking position. Look for an explicit height-adjustment feature if that is a priority.
Can fire ring grill components be replaced individually?
Availability depends on the manufacturer and model. Before ordering a replacement grate, handle, or anchor, confirm the model number, compatibility, and any installation requirements with the supplier.
Compare Fire Rings by How They Will Be Used
If you are also deciding how cooking amenities fit into a larger recreation project, explore these five benefits of installing outdoor grills in parks.
The best starting point is the work each component needs to do. Compare the grate for cooking, its movement for access, and the mounting system for installation and cleanup. Reviewing those details together gives you a clearer picture than dimensions alone.
Explore Park Tables’ commercial fire pits and fire rings to compare available models for your park or campground. For help narrowing the options, have your preferred cooking area, mounting needs, and project requirements ready when contacting the Park Tables team.
